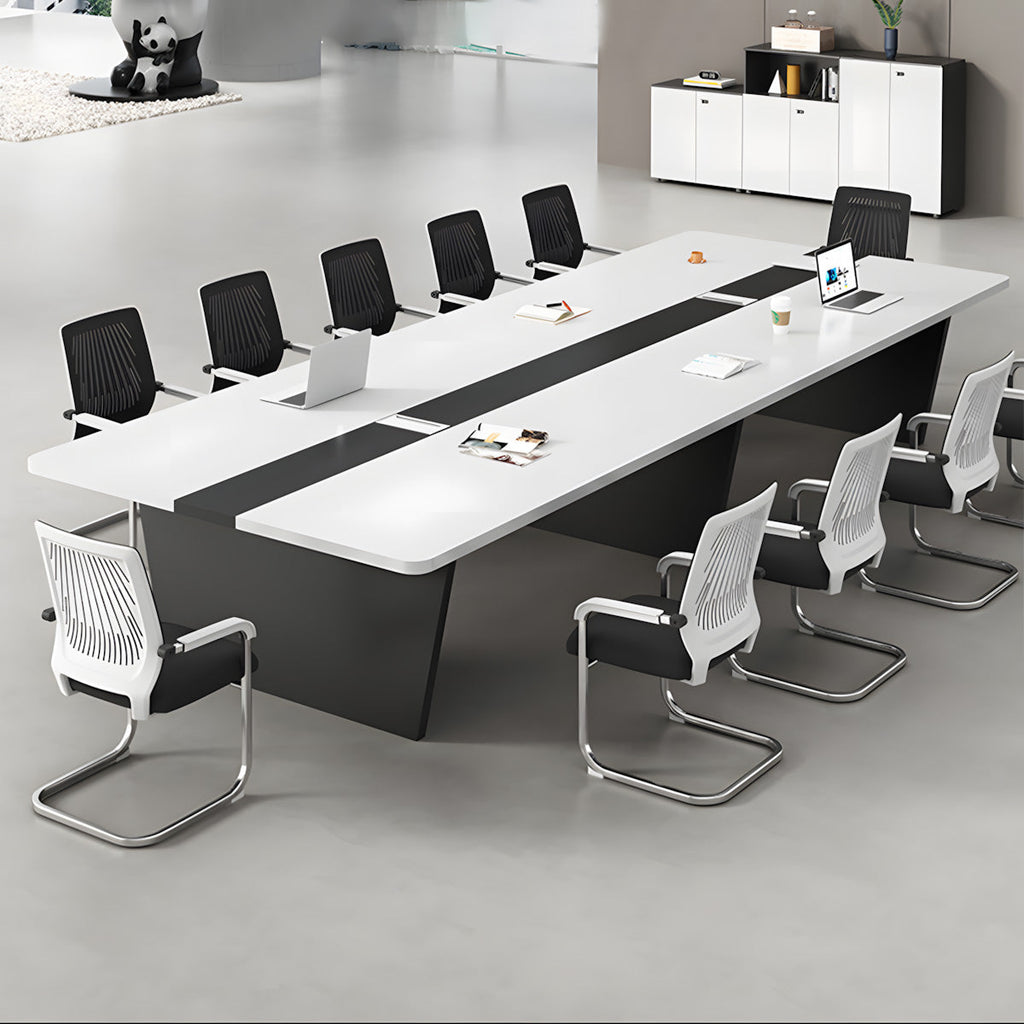

How to Plan Power and Cable Management for a Conference Table Before Installation


  • Jul 26, 2026
  • By Bruce Evans

Buying a conference table with a power module does not complete the connection plan. The module still needs a building-side power source, a route into the table base, space for adapters and cables, and an accessible way to service everything later. If any one link is missing, the finished room can still end up with an extension cord across a doorway or a floor box trapped beneath a pedestal.

This guide treats cable management as coordination work, not decoration. It does not replace electrical design. Building power changes should be completed by qualified professionals under the requirements that apply to the project. OSHA's overview of workplace electrical hazards is also a useful reminder that flexible cords are not a substitute for permanent wiring when permanent wiring is required.

Start With the Connection Path, Not the Tabletop

Plan conference table cable management as a six-link chain: building source, delivery route, vertical rise, under-table distribution, tabletop access and user device. A tabletop module solves only one link. Mark all six on the plan.

The starting point is the exact table footprint. Complete the room-fit work in the conference table size guide, then add the base, not just the top. A slab base, panel leg or center pedestal can occupy the same area where a contractor expected to raise cables. A table centered in the room can therefore need a floor box that is intentionally off the room centerline.

Use one continuous colored line on the plan for each service. Show AC power separately from data and AV. Label the point where the route changes from building responsibility to furniture responsibility. That simple boundary prevents the common handoff failure in which the electrician expects the furniture installer to provide a whip while the installer expects a finished receptacle under the table.

Build the Device and Port Schedule

Count devices before outlets. Write down what will remain in the room, what users bring and what must connect at the table. A useful schedule names the device, connector, power draw category, normal location and owner. For example, a room computer may live in a credenza but still need HDMI and USB at the table, while a video bar may need power only at the display wall.

  • List permanent equipment: display, camera, speakerphone, room computer, control panel and any wireless presentation gateway.
  • List user equipment: laptops, phones, tablets and accessibility devices.
  • Record the actual connector at both ends. "Video" is not specific enough; write HDMI, USB-C, USB-A or a network connection.
  • Mark which connections must be reachable from a seated position and which may remain below the table.
  • Reserve a serviceable location for power bricks, small switches and excess cable rather than pushing them loose onto the floor.

Do not count every USB-C opening as laptop charging. Confirm the power-delivery rating and whether its power supply fits inside the planned tray. An HDMI plate may be only a pass-through connection; the far end still has to be resolved.

Compare Five Ways to Bring Power to the Table

The right source depends on what the building allows, not only on the cleanest rendering. Use this comparison during the first furniture, electrical and AV coordination call.

Source Best fit Main coordination risk
Floor box Fixed table location in a room that can accept floor work Box conflicts with a pedestal, chair footwell, slab condition, or required floor rating
Wall outlet Table near a wall with a protected route into an end panel or leg Cord must not cross a walking path or be pinched by movable furniture
Ceiling service pole Retrofit where floor access is impractical and the ceiling system permits a listed pathway Pole location can interfere with sightlines, lighting, or table movement
Raised floor Offices where accessible underfloor pathways already serve furniture zones Final cable exit still needs to align with the table base and remain accessible
Surface raceway retrofit Existing room with an approved perimeter route and no concealed path Raceway must be selected and installed for the service, traffic, and finish conditions

A nearby wall receptacle is not automatically usable. Measure the protected route, including the rise into the table. Do not plan an extension cord across open circulation as the finished condition. If floor or wall work is uncertain, resolve that constraint before ordering from the Anzhap conference table collection. Table shape also affects base placement, so compare the options in Anzhap's conference table shapes guide.

Three Power-Source Layouts

Wall-Fed Room

A wall feed works best when the table end can sit close enough for an approved, protected connection without narrowing the aisle. Draw the cord path at floor level and at the table entry. If the table will sometimes move for cleaning or reconfiguration, identify who disconnects it and where the disconnected cord is stored.

Floor-Box Room

A floor box can provide the shortest visible route, but only after the furniture base is coordinated. The box, cover, plug and cable bend all need usable space. Ask for the assembled base drawing and the floor-box cover dimensions, then overlay them at the same scale.

Retrofit Without Floor Access

In a leased or finished room, the answer may be a listed surface pathway from the wall or a ceiling route designed by the project professionals. Treat this as a building decision, not a furniture accessory. Confirm fire, accessibility and property-management requirements first.

Place the Floor Box From the Table Base, Not the Room Center

The best floor-box location is a serviceable zone inside or beside the table base where the cover can open, plugs can seat and cables can rise without a hard bend. "Center of table" and "center of room" are unreliable instructions because neither describes the structure below.

Start with the final table centerline and orientation. Add the full base footprint, internal wire channel, removable panels, modesty panels and cross rails. Then add seated knee and foot zones. Place the box only in the remaining service zone. If no such zone exists, change the base, source or table position before construction.

Dimension the box from permanent references such as finished walls or structural grid lines, not movable chairs. Include its size and cover swing. Before floor work, have the appropriate professional verify the slab, utilities and project requirements.

Match Tabletop Modules to Real Meeting Behavior

The useful module is the one people can reach without standing, sharing a single charger or stretching a cable across another person's notes. On long tables, distributing access points usually works better than placing every connector in one center box. Product pages for a conference table with built-in power and a table with a concealed cable box show two different approaches, but the port mix and building feed still need project confirmation.

AC and USB-C Charging

Estimate simultaneous laptop charging, not total seats. In an internal meeting, perhaps half the participants need power; in an all-day training room, nearly every seat may. Record the expected scenario, then confirm the circuit strategy with the electrical professional. For USB-C, specify the charging requirement in watts and verify whether power is shared across ports.

Video and USB Connections

Decide whether users connect at the table, at a wall plate or wirelessly. If the table provides HDMI or USB, trace the far end to the display or room computer. Long signal runs may need active equipment, and active equipment needs power, ventilation and access. Do not bury it inside a closed base without a service plan.

Ethernet and Dedicated Room Equipment

Do not add data ports only because the power module has empty positions. Identify the device and network owner first. A room computer, control processor or conferencing appliance may need a dedicated connection, while guest laptops may use managed Wi-Fi. Label permanent network cables at both ends and leave enough access for testing.

Keep the Cable Path Serviceable

Hidden cables still need to be reached. Specify the sequence a technician will use: open the access panel, release the tray, identify the cable, unplug it and remove it without disassembling the table. If that sequence is impossible on the drawing, it will be worse after installation.

Use trays for distribution and strain relief, not as bins for power bricks. Separate power from signal wiring where the project design requires it. Preserve cable bend radius, allow a service loop and secure heavy adapters so their weight does not pull on a tabletop connector. Photograph the route before closing panels.

Coordinate the Table Base, Chairs and Power

Power planning can change seat usability. A base panel, plug body or hanging adapter may occupy the same knee space that appeared open in a top-view furniture plan. Overlay the selected conference chairs in both seated and pulled-back positions, then check the cable entry against chair arms, casters and user foot zones.

Ask the vendor for three details before approval: the underside access opening, the usable interior dimensions of the wire channel and the method for removing its cover after the table is assembled. A polished tabletop photograph cannot answer those questions. If the answers are unavailable, treat the route as unconfirmed.

Fixed and Modular Tables Need Different Plans

A fixed boardroom table can use a coordinated floor box and concealed spine. A modular training table needs a connection method that tolerates movement. If the room changes layouts, map each approved position and show where cables are disconnected.

For linked modules, check how power passes between sections, how many sections the system permits and whether connectors remain protected when tables separate. Store unused linking cables in a labeled location.

Create One Approval Drawing Before Ordering

Create a one-page handoff drawing at a readable scale. It should show the room, finished walls, doors, display wall, exact tabletop, complete base, every power or data source, cable route, module location and service-access direction. Add dimensions from fixed references and a short port schedule.

Have four parties mark it approved: furniture supplier, electrician, AV/IT lead and facilities or construction contact. Their scopes should appear on the same page. The furniture scope might stop at a cord below the base; the electrical scope might stop at a floor-box receptacle; the AV scope might supply the table-to-display cable. Unlabeled gaps are where change orders begin.

Before delivery, confirm that the final ordered table matches the drawing. Product substitutions can change base footprints and cable-box locations even when the tabletop dimensions remain the same.

Frequently Asked Questions

Can a conference table plug into a wall outlet?

Yes, if the table system is designed for that connection and the approved route can reach the outlet without crossing circulation, creating a pinch point or becoming an improvised permanent extension-cord solution. Have the project electrical professional confirm the finished arrangement.

Where should a floor box go under a conference table?

Place it in a dimensioned service zone coordinated with the exact table base. The cover, plugs and cable rise must remain accessible, and the box should avoid pedestals, cross rails, chair foot zones and walking paths. Do not specify it simply as "centered under table."

How many power outlets does a conference table need?

Base the count on simultaneous use, meeting duration and device type. Start with permanent equipment, then estimate how many participants will charge laptops at once. Confirm the circuit and module capacity instead of multiplying seats by one outlet.

Can power be added after the table is installed?

Sometimes, but the choices are narrower. A compatible module may be added only if the top, base and cable route support it. Building-side changes may require electrical and property approval. It is usually cheaper to reserve an accessible pathway and module location before installation.

Make the Connection Plan Before the Purchase

A successful conference table installation is not defined by whether the cords disappear in a product photo. It is defined by whether every connection has a documented source, protected route, usable entry point and service method in the real room.

Finalize the position, inventory devices and approve one conflict-checked drawing. For product dimensions or cable-access details, contact Anzhap before ordering.
